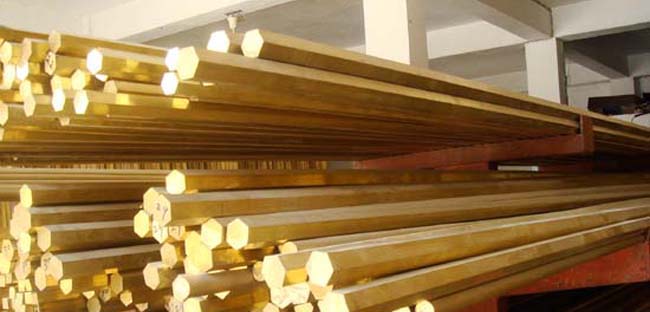

Brass Rods


We at Indorec Commidities buy/sell in Brass Rods.


Name CZ-112 Naval Brass Rods(291/89) Grade CZ-113 Naval Brass Rods(291/89) Grade II CZ-108 Lead free Riveting Brass Rods & Wires IS 4413/81 CZ-109 Lead free Riveting Brass Rods & Wires IS 4170/67 AS - 2738.2AS - 486
  Min Max Min Max Min Max Min Max Min Max
Copper 61 64 59 62 62 65 59 62 59 62
Tin 1 1.5 0.5 1.0 - - - - 0.80 1.50
Lead - 0.2 0.5 1.0 - 0.30 - 0.30 1.0 2.50
Iron - 0.1 - 0.10 - 0.10 - 0.10 - -
Arsenic - - - - - - - - 0.02 0.25
Total Impurities - 0.20 - 0.20 - 0.60 - 0.30 - -
Zinc Balance Balance Balance Balance Balance
  Brass Rods and Sections - BS - 2874 (BS 249/63)
Name CZ 114 Brass Rods CZ 115High Tensile Brass Rods CZ 121Free CuttingBrass Rods CZ 122 (BS - 218)Free Cutting Brass Rods CS 124Free Cutting Brass Rods IS 319 cor II CZ 130 Leaded Brass For Section CZ 131(DTD - 627) Free Cutting Brass with Improved Ductility
  Min Max Min Max Min Max Min Max Min Max Min Max Min Max
Copper 56 59 56 60 56 60 56.50 60 60 63 56 58 61 63
Lead 0.50 1.50 0.5 1.50 2.0 3.50 0.60 2.0 2.5 3.7 2.50 3.50 1.5 2.5
Iron 0.50 1.20 0.5 1.20 - - - 0.30 - 0.35 - - - -
Aluminium - 0.50 - 0.20 - - - - - - - 0.40 - -
Manganise 0.30 2.0 0.30 2.00 - - - - - - - - - -
Tin (SN) 0.20 1.0 0.60 1.10 - - - - - - - - - -
Zinc - Bal - Bal - Bal - Bal - Bal - Bal - Bal
Total Impurities - 0.50 - 0.50 - 0.75 - 0.70 - 0.50 - 0.75 - 0.50

Name Free Cutting and Forging Brass Rods DIN EN 17660 MS - 58 Free Cutting and Forging Brass Rods DIN EN 12164 DIN 17660 2.0402
Free Cutting Forging Brass CW614N CW617N CW608N
  Min Max Min Max Min Max Min Max Min Max Min Max
Copper 57 59 57 59 57 59 57 59 60 61 57 59
Lead 2.50 3.50 1.50 2.50 2.5 3.5 1.60 2.50 1.6 2.5 1.50 2.50
Tin - 0.40 - 0.30 - 0.30 - 0.30 - 0.20 - 0.30
Iron - 0.50 - 0.40 - 0.30 - 0.30 - 0.20 - 0.40
Aluminium - 0.10 - 0.10 - 0.05 - 0.05 - 0.05 - 0.10
Nickel - 0.50 - 0.40 - 0.30 - 0.30 - 0.30 - 0.20
Manganise - - - - - - - - - - - 0.20
Zinc Balance Balance Balance Balance Balance Balance
Total Impurities - 0.20 - 0.20 - 0.20 - 0.20 - 0.20 - 0.20

Name BS - 218 Modified Forging Brass IS 6912/85 FLB Forging Brass (with low Mn) High Tensile Brass Rods As IS 320/80 Riveting Brass Wires (Leaded) IS 2704/83
HT - 1 HT - 2
  Min Max Min Max Min Max Min Max Min Max
Copper 56.50 60.0 56.50 60 56 60 56 61 62 65
Lead 1.0 1.50 0.60 1.20 0.20 1.50 0.50 1.50 0.75 1.50
Tin - - - - 0.20 1.00 - 1.00 - -
Iron - 0.30 - 0.30 0.20 1.25 0.20 1.50 - 0.10
Aluminium - - - - - 0.20 0.30 2.0 - -
Manganise - 0.50 - 0.20 0.25 2.0 0.50 2.0 - -
Zinc Balance Balance Balance Balance Balance
Total Impurities - 0.50 - 0.25 - 0.50 - 0.50 - 0.50

Name JIS C 3601
(H 3250)		 JIS C 3604
(H 3250)		 JIS C 3771
(H 3250)
  Min Max Min Max Min Max
Copper 59.00 63.00 57 61 57.00 61
Tin - 0.20 - 0.20 - 0.30
Lead 1.80 3.50 1.80 3.50 0.50 2.50
Iron - 0.30 - 0.35 - 0.35
Zinc Balance Balance Balance
Total Impurities - 0.50 - 0.50 - 0.50
  Physical Properties of Brass Rods
Specification Size (MM) Tensile Strength (Kg / mm2 )Min % of Elongation 5.65 Min 0.2% Proof Stress Hardness HV IZOD Impact Value (Kg/FM)
HT-1 IS 320/80 - 49 12 - - -
HT-2 IS 320/80 - 53 12 - - -
DIN EN 17660 MS 58 (Forging) - 37 20 - - -
BS 218 Modified Forging Brass - 40 18 - - 2.2
DIN EN 17660 MS 58 (Free Cutting) - 43 15 - - -
Riveting Brass Wire (Leaded) IS 2704/83 -¼ Hard (HA)
½ Hard (HB)
Hard (HD)
Extra Hard (HE)		 325 Mpa
400 Mpa
500 Mpa
695 Mpa		 30
20
15
5		 - 110 to 130
131 to 150
151 to 175
176 to 215		 -
DIN EN 12164 CW 614N - 43 10 - - -
DIN EN 12164 CW 617N - 43 10 - - -
DIN EN 12164 CW 608N - 40 25 - - -
C 3601 JIS Annealed
½ Hard
Hard		 294 Mpa
343 Mpa
451 Mpa		 25
25
25		 - - -
C 3604 JIS - 333 Mpa 20 - - -
C-3771 JIS - 314 Mpa 15 - - -
CZ-112 Naval Brass Gr-1 Upto 12.50
12.50 to 50
50 to 100		 40
38.50
35		 18
18
18		 - - -
CZ-113 Naval Brass All Size 40 10 - - -
Gr-2
CZ-109 Lead Free - 34 25 - - -
CZ-108 Lead Free Annealed
Half Hard
Hard		 33
47 to 63
63 to 79		 35
35
35		 - - -
CZ-114 Hard 47
55		 18
12		 24.5
29.5		 - -
CZ-115 - 47 20 19.50 - -
CZ-121 Annealed 6 to 25
Annealed 25 to 50
Annealed 50 above
Half Hard 6 to 12
Half Hard 12 to 25
Half Hard 25 to 50
Half Hard 50 above
Hard 6 to 12
Hard 12 to 25		 345 Mpa
315 Mpa
285 Mpa
405 Mpa
395 Mpa
355 Mpa
325 Mpa
550 Mpa
490 Mpa		 12
17
22
4
6
12
17
-
4		 - - -
CZ-122 - 310 Mpa 20 - - -
CZ-124 6 to 12
12 to 25
25 to 50
50 above		 41
40
36
33		 4
6
12
17		 - - -
CZ-130 - 37 25 - - -
CZ-131 - 37 22 - - -
